Description

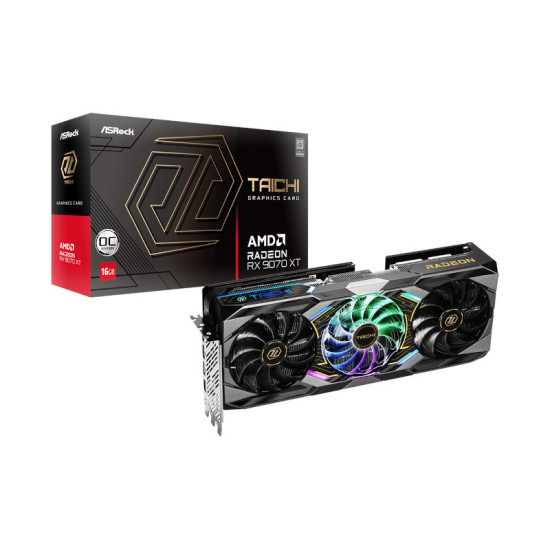

ASRock AMD Radeon RX 9070 XT Taichi OC 16GB GDDR6
Reverse Spin
The center fan spins reversely to lower turbulence and enhance air dispersion through the heatsink.
Taichi 3X Cooling System
Crafted for the best balance between the thermal efficiency and silence by all the details improved.
Striped Ring Fan
Designed For Enhanced Airflow
ASrock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Air Deflecting Fin
Guide Airflow to Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nickel-plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Polychrome SYNC
Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
LED Switch
Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.
ARGB Pin-header
More ARGB, More Fancy.
With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.
16 Power Phase Design with SPS
More Power Phase Equipped to Deliver More Sufficient Power.
Featuring 16 power phases with SPS components to raise maximum current to GPU and memory to offer enhanced performance.

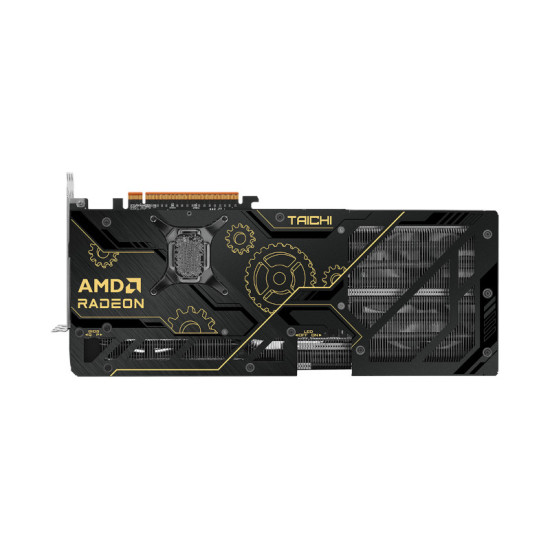

Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Dual BIOS
Dual BIOS design allows users choose preferred setting by switching between the P(Performance) BIOS and Q(Quiet) BIOS.
*Please make sure the system is powered off when you switch between P(Performance) BIOS and Q(Quiet) BIOS.
![SAV [0 Header-Hairline]](https://www.asrock.com/Graphics-Card/features/SAV.png)
Japanese SP-Cap
![SAV [Japanese SP-Cap]](https://www.asrock.com/Graphics-Card/features/SAV-JapanesePOSCAP.jpg)
With a high conductive polymer as the electrolyte, it has a lower equivalent series resistance (ESR) to provide outstanding electrical characteristics. In addition to that, it also has excellence in product operational life, reliability and heat resistance.
SPS (Smart Power Stage)
![SAV [SPS]](https://www.asrock.com/Graphics-Card/features/SAV-SPS.jpg)
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the GPU with enhanced performance and OC capability.
Premium 100A Power Choke
![SAV [Premium 100A Power Choke]](https://www.asrock.com/Graphics-Card/features/SAV-60APowerChoke.jpg)
Compared to traditional chokes, ASRock’s premium 100A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
![SAV [2oz Copper PCB]](https://www.asrock.com/Graphics-Card/features/SAV-2oz.jpg)
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCB
![SAV [Matte Black PCB]](https://www.asrock.com/Graphics-Card/features/SAV-MattePCB.jpg)
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock’s high-end graphics card.
High Density Glass Fabric PCB
![SAV [High Density Glass Fabric PCB]](https://www.asrock.com/Graphics-Card/features/SAV-HDPCB.jpg)
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
ALL YOU NEED FOR ULTRA FAST GAMING
Speed, performance, and visuals work together for smooth frames and total immersion. The ultra-fast Radeon RX 9000 Series Graphics Cards are powered by unified AMD RDNA™ 4 compute units with enhanced raytracing capabilities for an ultra-immersive experience across all key gaming resolutions. Activate AMD HYPR-RX6 to instantly enable all supported performance boosting and latency reducing technologies across thousands of your favorite games. Enjoy high-quality, AI-powered upscaling with AMD FidelityFX™ Super Resolution 41, delivering an immersive gaming experience now and for years to come.
SUPERPOWERED VISUALS ENHANCED WITH AI
Get immersed in the action of lifelike visuals with next-gen raytracing. Play in perfect clarity with higher quality, AI-powered AMD FidelityFX™ Super Resolution 41 image upscaling with advanced frame generation in supported games. Put your skills on full display with enhanced multimedia and streaming experiences with the AMD Radiance Display™ Engine.
Radeon RX 9070 XT Taichi OC INSTANT PERFORMANCE FOR EVERY MOVE
Take the instant performance of AMD Radeon™ to an even higher level with the superpower of AMD Software. Enable AMD HYPR-RX6 in one click to unleash the true potential of your Radeon™ GPU, leveraging the combined forces of AMD Radeon™ Super Resolution1, AMD Fluid Motion Frames 2, AMD Radeon™ Anti-Lag and AMD Radeon™ Boost. UX with dependable drivers and day zero game support will ensure game optimizations are ready to go to deliver high frame rates, sharper visuals, and low latency for thousands of gaming experiences that await.
Radeon RX 9070 XT Taichi OC FUTURE READY TECH WITH AI
AMD Radeon™ delivers all you need to keep your system feeling fast for years to come. Pair it with AMD Ryzen™ 9000 series processors featuring PCI Express® Gen 5 support and the latest AMD Smart Access Memory™ technology3 to realize the full performance of your AM5 platform. Harness both Radeon and Ryzen AI-enabled technologies, and upgrade to next generation displays with DisplayPort™ 2.1 support and up to 16GB of video memory to experience AAA games in all their visual glory now and for years to come.
Additional Information
brands
AsRock
ean-upc-code
4711581490444
gpu-memory-size
16GB
gpu-series
Radeon RX 9000
memory-series
GDDR6
color
Black
SKU
RX9070XT-TC-16GO
Weight
1 kg
Dimensions
N/A
Specifications
| Graphics Engine | AMD Radeon RX 9070 XT |
| Bus Standard | PCI® Express5.0 x16 up to 32GT/s |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Memory | 16GB GDDR6 |
| Engine Clock |
Boost Clock: Up to 3100 MHz Game Clock: 2570 MHz |
| Stream Processors | 4096 |
| Memory Clock | 20 Gbps |
| Memory Interface | 256-bit |
| Resolution | Digital Max Resolution: 7680×4320 |
| Interface |
3x DisplayPort 2.1b 1x HDMI 2.1b |
| HDCP | Yes |
| Multi-view | 4 |
| Recommended PSU | 850W |
| Power Connector | 1 x 12V-2×6-pin |
| Accessories |
1 x Quick Installation Guide 1 x 16Pin to 3×8 Pin Power Cable 1 x Graphics Card Stand |
| Dimensions | 330 x 140 x 61mm, 3-slot |
| Net Weight | 1554 g |
| Warranty | 2 years |
| Note* | Price, feature and specifications are subject to change without notice |
