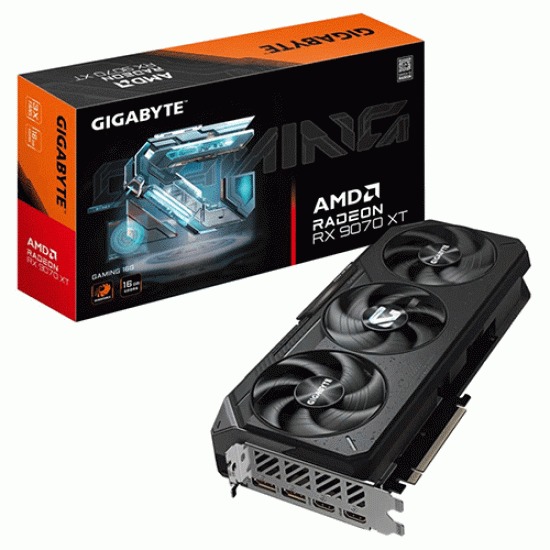

Gigabyte Radeon RX 9070 XT Gaming OC 16Gb GDDR6 Graphics Card (GV-R9070XTGAMING OC-16GD)
Feature
- Powered by Radeon™ RX 9070 XT
- Integrated with 16GB GDDR6 256bit memory interface
- WINDFORCE cooling system
- Hawk fan
- Server-grade Thermal conductive gel
- RGB Lighting
- Dual BIOS (Performance / Silent)
- Reinforced structure
CORE CLOCK
Boost Clock* : up to 2970 MHz
Game Clock* : up to 2400 MHz
Gigabyte COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.
ASTONISHING EXTERIOR DESIGN
The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.
MULTI-LAYERED VISUAL
Like armor, the exterior features a multi-layered structure combined with varied surface material finishes.
UNIQUE TEXTURE
Unique textures cover the curved surface, paired with the layering of appreance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics.
RGB LIGHTING
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
SLIDING SIDE PLATE
Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.
REINFORCED STRUCTURE
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
| Graphics Processing | Radeon™ RX 9070 XT |
| Core Clock | TBD |
| Stream Processors | 4096 |
| Memory Clock | 20 Gbps |
| Memory Size | 16GB |
| Memory Type | GDDR6 |
| Memory Bus | 256 Bit |
| Card Bus | PCI-E 5.0 |
| Digital Max Resolution | 7680×4320 |
| Multi View | 4 |
| Card Size | L=288 W=132 H=56 mm |
| PCB Form | ATX |
| Direct X | DirectX 12 API |
| OpenGL | 4.6 |
| Recommended PSU | 850W |
| Power Connectors | 8 pin*3 |
| Output | DisplayPort 2.1a *2 HDMI 2.1b *2 |
| Accessories | Quick guide |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
