Description

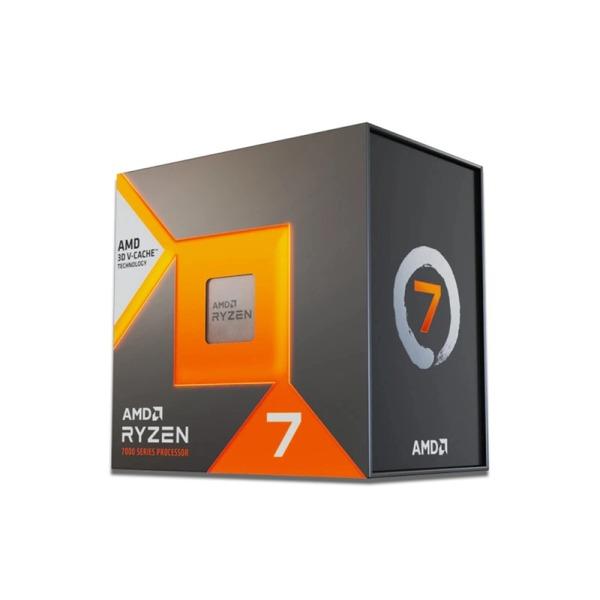

AMD Ryzen 7 7800X3D AM5 Gaming Processor (5 GHz / 8 Cores / 16 Threads)
The Dominant Gaming Processor, with AMD 3D V-Cache™ Technology for Even More Game Performance1
Whatever the setting, whatever the resolution, lead your team to victory with this incredible gaming processor. Plus, enjoy the benefits of next-gen AMD 3D V-Cache™ technology for low latency and even more game performance.1
Additional Information
brands
AMD
cpu-unlocked
Yes
ean-upc-code
730143314930
processor-series
Ryzen 7|ryzen 7000
socket
AM5
tdp
120 W
threads
16
total-l3-cache
96MB
color
Silver
SKU
100-100000910WOF
Weight
1 kg
Dimensions
N/A
Specifications
| Category | Details |
| Name | AMD Ryzen™ 7 7800X3D |
| Family / Series | Ryzen / Ryzen 7000 Series |
| Form Factor | Desktop, Boxed Processor |
| Market Segment | Enthusiast Desktop |
| AMD PRO Technologies | No |
| Regional Availability | Global |
| Codename | Raphael AM5 |
| Architecture | Zen 4 |
| CPU Cores / Threads | 8 Cores / 16 Threads |
| Multithreading (SMT) | Yes |
| Max Boost Clock | Up to 5 GHz |
| Base Clock | 4.2 GHz |
| L1 Cache | 512 KB |
| L2 Cache | 8 MB |
| L3 Cache | 96 MB |
| Default TDP | 120W |
| Core Tech | TSMC 5nm FinFET |
| I/O Die Tech | TSMC 6nm FinFET |
| CCD Size | 71 mm² |
| IOD Size | 122 mm² |
| Package Die Count | 2 |
| AMD EXPO™ | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer | Yes |
| Ryzen Master Support | Yes |
| CPU Socket | AM5 |
| Compatible Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| CPU Boost Tech | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE–SSE4.2, SSE4A, SSSE3 |
| Thermal Solution (Box) | Not included |
| Recommended Cooler | Liquid cooler recommended |
| Max Temp (Tjmax) | 89°C |
| Launch Date | 04/06/2023 |
| OS Support | Windows 11/10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit |
| USB 3.2 Gen 2 (10Gbps) | 4 |
| USB 3.2 Gen 1 (5Gbps) | 0 |
| USB 2.0 | 1 |
| Native SATA Ports | 0 |
| PCI Express Version | PCIe 5.0 |
| PCIe Lanes (Total/Usable) | 28 / 24 |
| Extra PCIe Lanes (Motherboard) | X670E: 12× Gen4 / X670: 12× Gen4 / B650E: 8× Gen4 / B650: 8× Gen4 |
| NVMe Support | Boot, RAID 0/1/10 |
| Memory Type | DDR5 |
| Memory Channels | 2 |
| Max Memory | 128 GB |
| Memory Subtype | UDIMM |
| Max Memory Speed | 2×1R: 5200 / 2×2R: 5200 / 4×1R: 3600 / 4×2R: 3600 |
| ECC Support | Yes (with motherboard support) |
| Integrated Graphics | AMD Radeon™ Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| USB-C DP Alt Mode | Yes |
| Product ID (Box) | 100-100000910WOF |
| Supported Technologies | AMD EXPO™, AMD Ryzen™ Technologies |
