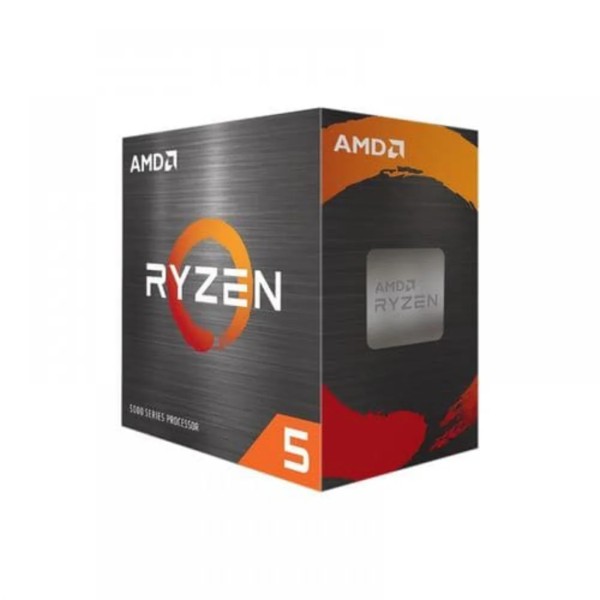

AMD Ryzen 5 5600F AM4 6 Cores 12 Threads Desktop Processor
High-Performance 6-Core Zen 3 Architecture
The Ryzen 5 5600F is built on AMD’s advanced Zen 3 architecture, delivering 6 cores and 12 threads for strong multitasking and efficient gaming performance. Its base clock runs at 3.0 GHz, with a max turbo boost up to 4.0 GHz, making it ideal for demanding workloads and modern games without integrated graphics dependency.
Optimized for Socket AM4 Platform
This processor uses the proven AMD AM4 socket, ensuring compatibility with a wide range of chipsets such as X570, B550, X470, and B450. It extends the life of the AM4 ecosystem, providing an affordable upgrade path for existing users.
Large Cache and Efficient Design
Equipped with 32 MB of L3 cache and 3 MB of L2 cache (512 KB per core), the Ryzen 5 5600F excels in memory-intensive operations and maintains smooth responsiveness. With a 65W TDP, it balances power consumption and sustained performance efficiently on the 7nm process technology.
DDR4 and PCIe 4.0 Support
It supports dual-channel DDR4-3200 memory and PCIe 4.0 connectivity, enabling faster data transfer, storage, and GPU communication. This ensures excellent future-proofing for gamers and productivity users looking for high-speed system responsiveness
AMD
6
Ryzen 5
AM4
12
N/A
100-000001903
1 kg
N/A
| Specification | Details |
|---|---|
| Model | AMD Ryzen™ 5 5600F |
| Family | Ryzen |
| Series | Ryzen 5000 Series |
| Form Factor | Desktops, Boxed Processor |
| Market Segment | Mainstream Desktop |
| Regional Availability | APJ |
| Former Codename | Vermeer |
| Processor Architecture | Zen 3 |
| # of CPU Cores | 6 |
| Multithreading (SMT) | Yes |
| # of Threads | 12 |
| Max. Boost Clock | Up to 4 GHz |
| Base Clock | 3 GHz |
| L1 Cache | 384 KB |
| L2 Cache | 3 MB |
| L3 Cache | 32 MB |
| Default TDP | 65W |
| Processor Technology for CPU Cores | TSMC 7nm FinFET |
| Processor Technology for I/O Die | 12nm (Globalfoundries) |
| CPU Compute Die (CCD) Size | 74mm² |
| I/O Die (IOD) Size | 125mm² |
| Package Die Count | 2 |
| Unlocked for Overclocking | Yes |
| CPU Socket | AM4 |
| Supporting Chipsets | X570 , X470 , X370 , B550 , B450 , B350 , A520 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64 |
| Max. Operating Temperature (Tjmax) | 95°C |
| *OS Support | Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
| Native USB 3.2 Gen 2 (10Gbps) | 4 |
| Native USB 3.2 Gen 1 (5Gbps) | 0 |
| Native USB 2.0 (480Mbps) | 0 |
| Native SATA Ports | 2 |
| PCI Express® Version | PCIe® 4.0 |
| Native PCIe® Lanes (Total/Usable) | 24,20 |
| NVMe Support | Boot , RAID0 , RAID1 , RAID10 |
| System Memory Type | DDR4 |
| Memory Channels | 2 |
| Max. Memory | 128 GB |
| System Memory Subtype | UDIMM |
| System Memory Specification | Up to 3200 MT/s |
| Max Memory Speed | 2x1R DDR4-3200 2x2R DDR4-3200 4x1R DDR4-2933 4x2R DDR4-2667 |
| ECC Support | Yes (Requires mobo support) |
| Graphics Model | Discrete Graphics Card Required |
