Kingston KSM32RD8/32HD 32GB DDR4 SDRAM Server Premier Memory

Kingston KSM32RD8/32HD 32GB DDR4 SDRAM Server Premier Memory

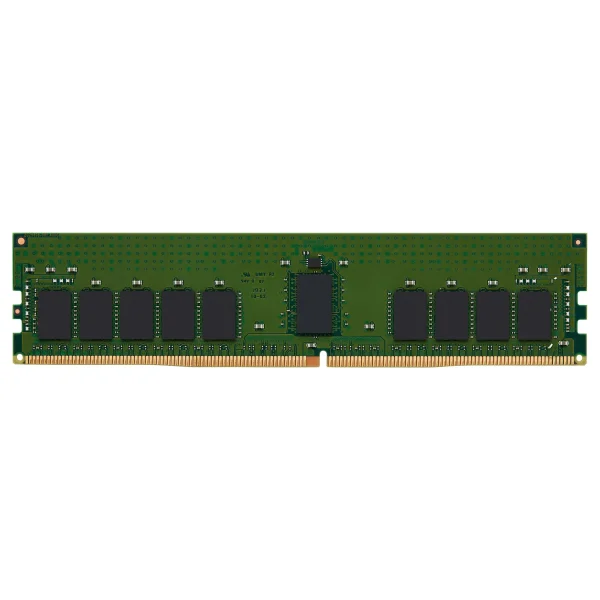

Kingston’s KSM32RD8/32HD is a 4G x 72-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/ parity, 2Rx8, ECC, memory module, based on eighteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

Features

• 32GB DDR4-3200 ECC Registered DIMM (RDIMM)
• 2Rx8 dual-rank memory architecture
• CL22 latency at 1.2V
• Built with eighteen 2G x 8-bit FBGA components
• JEDEC standard DDR4-3200 timing: 22-22-22
• 288-pin DIMM with gold contact fingers
• Supports ECC error correction and detection
• Registered memory with parity support
• Compatible with multiple transfer rates:
  • PC4-3200
  • PC4-2933
  • PC4-2666
  • PC4-2400
  • PC4-2133
  • PC4-1866
  • PC4-1600
• 16 internal memory banks
• Bank Grouping support for optimized latency
• Bi-Directional Differential Data Strobe
• 8-bit pre-fetch architecture
• Burst Length support: BL8 and BC4 (Burst Chop)
• On-Die Termination (ODT) support
• Integrated temperature sensor with SPD
• Per DRAM Addressability supported
• Internal Vref DQ level generation available
• Write CRC supported across all speed grades
• CA Parity (Command/Address Parity) mode supported
• RoHS compliant

Power Specifications

• VDD: 1.2V
• VDDQ: 1.2V
• VPP: 2.5V
• VDDSPD: 2.41V – 2.75V
