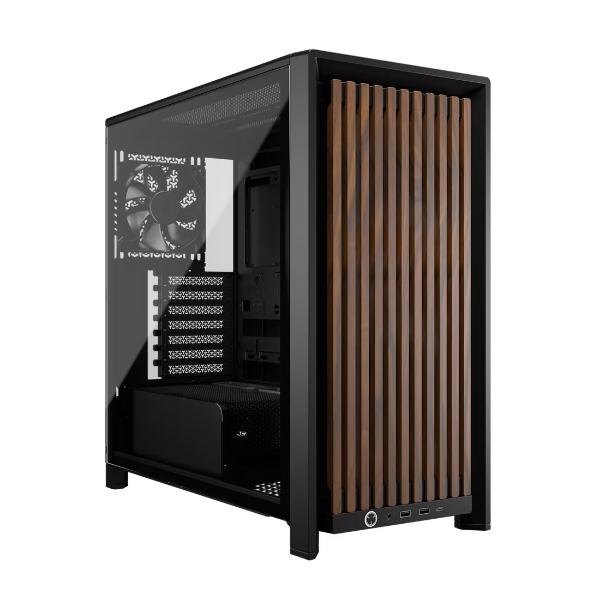

Corsair FRAME 4000D WOOD RS Modular Mid-Tower PC Case (Black)
NATURALLY COOLER
NATURAL WOOD FRONT PANEL
The FRAME 4000D WOOD RS lets you create a standout build that blends right in thanks to a refined front panel featuring real wood for the perfect mix of style and cooling performance.
BUILD YOUR WAY
EXPANSIVE MODULAR POSSIBILITIES
The revolutionary FRAME Modular Case System redefines customization by offering a modular design with an array of easily-swappable parts so you can customize the look and performance of your PC.
FAN FOCUSED
CORSAIR INFINIRAIL™ FAN MOUNTING SYSTEM
This steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail to mount fans up to 200mm (140mm in the roof) exactly where you need them, ensuring targeted airflow without limitations of fixed mounting points.
BUILD AND CHILL
THREE 360mm RADIATOR MOUNTS
Customize your cooling with three dedicated mounting locations for 360mm radiators in the front, roof, or side. Mount up to dual 360mm radiators simultaneously while still having space for additional intake/exhaust fans for extra cooling performance.
GO WITH THE FLOW
FOUR RS120 PWM FANS INCLUDED
RS120 PWM fans feature daisy-chainable connections for easy setup. Their magnetic dome bearings minimize friction, delivering a perfect combination of high airflow and quiet operation.
FUTURE PROOF
A BREEZE TO BUILD IN
With a modern design approach to a mainstream PC format, the FRAME 4000D WOOD RS has the convenient features to take the hassle out of your build.
EXTRA AIRFLOW
An additional 120mm fan is pre-installed in the rear mount to help keep components cooler right out of the box.
SAG-FREE GRAPHICS CARDS
Every CORSAIR FRAME 4000D WOOD RS includes a GPU Anti-sag Stabilization Arm to keep your GPU steady, so you never have to worry about damaging your PCIe slot.
CABLE SHROUD
Keep unused and overly long cables out of sight with the cable shroud for a clean and organized interior.
WIDE COOLING FLEXIBILITY
Customize your cooling setup with room for up to 13x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators.
The FRAME 4000D WOOD RS has space to accommodate the most ambitious builds with room to fit GPUs up to 405mm, even with 25mm front fans installed.
Corsair
Black
Mid Tower
E-ATX
2 Year
CC-9011340-WW
2 kg
N/A
| Category | Specification |
|---|---|
| Case Size | Mid-Tower |
| Motherboard Support | Mini-ITX, MicroATX, ATX, E-ATX (305mm × 277mm) |
| Dimensions (H × L × W) | 486mm × 490mm × 239mm |
| Material | Steel, Solid Wood, Tempered Glass, Plastic |
| Color | Black |
| Weight | 11.82kg |
| Case Window | Tempered Glass |
| Left Side Panel | Tempered Glass |
| Right Side Panel | Steel |
| Power Supply Support | ATX |
| Maximum PSU Length | 220mm |
| Maximum GPU Length | 430mm |
| Maximum CPU Cooler Height | 170mm |
| Expansion Slots | 7 Horizontal or 3 Vertical |
| Vertical GPU Mount | Supported (Riser Card Sold Separately) |
| Reverse Connector Motherboard Support | Yes |
| Cable Routing Space | 37mm |
| Dust Filtration | Yes |
| RapidRoute Included | No |
| Included Fans | RS Series |
| Internal 3.5” Drive Bays | 1 |
| Internal 2.5” Drive Bays | 2 |
| Front I/O Ports | 1× USB 3.2 Gen 2×2 Type-C, 2× USB 3.2 Gen 1 Type-A, 1× Audio In/Out |
| Front I/O Motherboard Connections | 1× USB-3.2 Gen2x2 Type-E, 1× USB 3.2 Gen1 20-Pin, 1× F_PANEL, 1× HD Audio |
| Radiator Compatibility | 120mm, 140mm, 240mm, 280mm, 360mm |
| Compatible Liquid Coolers | H60, H100, H115, H150, NAUTILUS, TITAN |
| Top Radiator Support | 360mm, 280mm, 240mm |
| Front Radiator Support | 360mm, 280mm, 240mm |
| Side Radiator Support | 360mm, 280mm, 240mm |
| Rear Radiator Support | 140mm, 120mm |
| Bottom Radiator Support | None |
| Top Fan Support | 3× 120mm, 2× 140mm |
| Front Fan Support | 3× 120mm, 2× 140mm, 2× 200mm |
| Bottom Fan Support | 3× 120mm |
| Side Fan Support | 3× 120mm, 2× 140mm |
| Rear Fan S |
