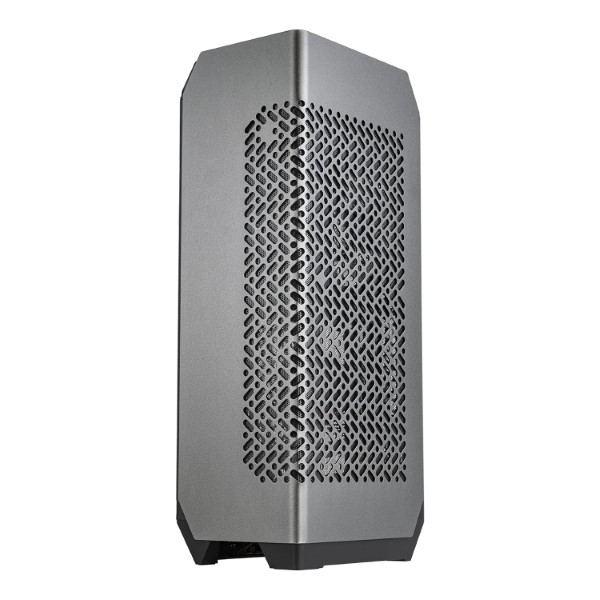

Cooler Master Ncore 100 Max ITX SFF Computer Case – Silver Edition | Pre Installed SFX 850 ATX 3.0 PSU, Customized CPU Cooler & PCIe 4.0 Riser Cable | You Can Fit RTX 4080 Super | USB Type C
The compact Case for powerful PC
Discover the Ncore 100 MAX by Cooler Master: a compact, high-performance addition to the MAX series. It offers advanced cooling, power solutions, and a small form factor with anodized aluminum panels. Accommodating up to 3.9 Slot GPU, it ensures compatibility with the latest processors, delivering unparalleled performance without sacrificing design. Experience versatility, compatibility and peak performance with the sleek, space-saving Ncore 100 MAX. Elevate your setup today!
CUSTOM AIO COOLING
A custom 120mm AlO cooling solution works well with the latest i9 and R9 CPUs and features both AMD AM5/AM4 and Intel LGA1700 sockets.
HIGH-END GPU COMPATIBILITY
Includes support for high performance, triple-slot GPUs up to 336mm in length and 140mm in height, with four included 6+2 pin power cables and a vertical mount design.
TAILOR-MADE POWER SOLUTION
Cooler Master’s V SFX Gold 850W ATX 3.0 PSU covers all your power needs and comes with custom length cables.
ULTRA-SMALL FOOTPRINT
The NCORE 100 MAX is super compact, with a footprint about the size of a small booklet.
PREMIUM ALUMINUM PANEL
An anodized aluminum shell makes the Ncore 100 MAX stand out as a desktop work of art.
AIRFLOW
The NCORE 100 MAX layout has been meticulously designed to offer the most efficient thermal layout. This layout pulls in air from the standing sides of the case, which are its largest surfaces.
OPEN FRAME DESIGN
Eliminating three surfaces usually included in a standard case to let you approach installation from numerous angles. Even tha cable cover features tool-less removal, for the utmost in accessibility.
PRE-ROUTED CABLES
Includes custom length, pre-routed cables which have been placed right where you need them and are ready to be connected to your motherboard and GPU.
Innovative Extendable Mechanism
Extendable width from 155mm to 172mm allows for 4 GPU slots and RTX 4090 compatibility or 3 slots for a super-small form factor.
Easy Installation
Pre-routed cables ensure the installation process is as smooth as can be.
Ultra-silent Performance
A custom Silencio fan provides total control over noise output and cooling performance.
Minimalist Design, Maximalist Power
The Ncore 100 MAX has been designed with a minimalist industrial design that would look right at home in a design studio. The MAX also includes ample ventilation and adjustable space to house enough power to satisfy even the most power-hungry use cases such as gaming and creative works.
Minimum effort, maximum payoff
Small form factor PC are notoriously difficult to install because of the cramped space. Not the Ncore 100 MAX, it is the easiest Compact case on the market to build in just pop in your motherboard and GPU through the open frame design and connect the pre-routed cables.
Cooler Master
4719512143582
ITX
Normal
120mm
2 Year
NR100-MNNN85-SL0
N/A
N/A
| Product Name | NCORE 100 MAX |
| Model Number | NR100-MNNN85-SL0 |
| Color | Dark grey |
| Materials |
Exterior: Steel, Plastic, Aluminum Left Side Panel: Aluminum |
|
Dimensions (L x W x H) |
Incl. Protrusions: 155mm x 212mm x 481mm (Normal mode) / 172mm x 212mm x 481mm (Expansion mode) Excl. Protrusions 155mm x 212mm x 457mm / 172mm x 212mm x 457mm Volume (Liters Incl. Protrusions): 15.80L / 17.54L |
| Motherboard Support | ITX |
| Expansion Slots | 3 x PCIe Slot mounting |
| Drive Bays |
5.25“ ODD: N/A 3.5” HDD: N/A 2.5” SSD: 1 |
| I/O Panel |
USB Ports: USB 3.2 Gen1 Type A x 2, USB 3.2 Gen2 x 2 Type C x 1 Audio In / Out 3.5mm: Audio combo x 1 |
| Included Riser Cable | 240mm PCIe 4.0 x16 x 1 |
| Included CPU Cooling Solution |
120mm Radiator with 38mm thickness x 1 (Custom PWM fan max.2400RPM ) |
| Included Power Supply Unit | V SFX Gold 850W ATX3.0 |
| Pre-installed Fan(s) | 120mm SickleFlow PWM fan x1(max. 1800RPM) |
| Clearances |
CPU Cooler: 48mm Power Supply: 100mm RAM: 48mm Graphics Card: 337mm x 62mm x 180mm (Normal, 3.0 Slot thick) 357mm x 79mm x 180mm (Expansion, 3.9 Slot thick) (Maximum space including GPU power connector) |
| Cable Routing | Behind MB Tray: 11mm |
| Dust Filters | Side panels |
| Power Supply Support | SFX |
| Warranty | 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery) |
| Note* | Price, feature and specifications are subject to change without notice. |
