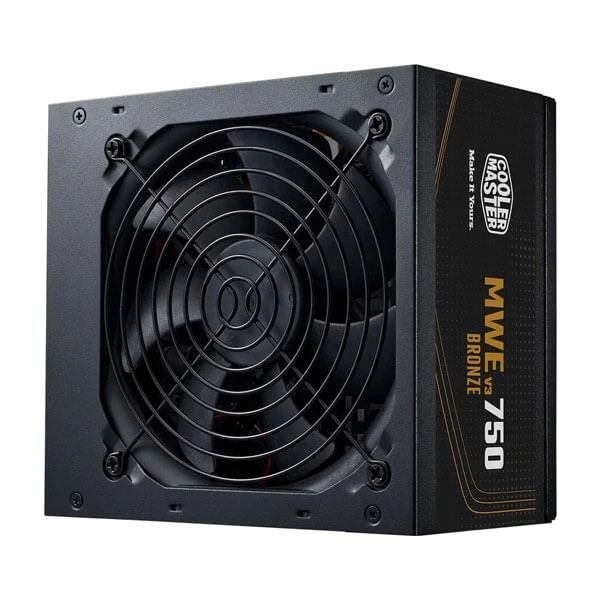

Cooler Master MWE Bronze 750 V3 ATX 3.1 80 Plus Bronze SMPS
Feature
- Quiet HDB fan: A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.
- Single +12V rail: All power comes from a single +12V source, ensuring consistent output through all connected cables.
- 80 Plus Bronze efficiency certification: This unit is certified to achieve more than 88% efficiency at typical loads in a 230V test.
- DC-to-DC technology: The DC-DC circuit design offers reliable, stable output to all connected components.
- High temperature resilience: A 40°C maximum operating temperature allows for pushing your machine to the limits with overclocking and other high-intensity applications.
- 2 EPS Connectors: Two 4-pin EPS connectors are included for universal compatibility with current- gen motherboards.
- ATX 3.1 support: Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.
- 5-year warranty: This unit comes with a standard limited manufacturing warranty of 5 years from the date of purchase.
Power Evolved
Cooler Master presents the MWE Bronze V3 230V, the upgraded version of the MWE Bronze featuring ATX 3.1 support, high temperature resilience, a smart DC-to-DC + LLC circuit design, a quiet HDB fan, 80 Plus Bronze efficiency, an embossed cable, and a 5-year warranty.
ATX 3.1 Support
Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.
*All performance stats confirmed in 25°C ambient temperature testing.
Embossed Cable
An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.
Quiet HDB Fan
A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.
*All performance stats confirmed in 25°C ambient temperature testing.
Certified Efficiency
The MWE Bronze V3 230V is certified to achieve more than 88% efficiency at typical loads.
*All performance stats confirmed in 25°C ambient temperature testing.
High Temperature Resilience
A 40°C operating temperature allows for pushing your machine to the limits.
*All performance stats confirmed in 25°C ambient temperature testing.
Cooler Master
4719512136300
Normal
750W
5 Years
Black
MPE-7501-ACABW-3BIN
1 kg
N/A
| Specification | |
|---|---|
| Product Name | MWE Bronze 750 V3 230V |
| Item Code | MPE-7501-ACABW-3BIN |
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 200 – 240V |
| Input Current | 6A |
| Input Frequency | 50 – 60Hz |
| Dimensions (L x W x H) | 140 x 150 x 86mm |
| Fan Size | 120 mm |
| Fan Bearing | HDB |
| Efficiency | ≥ 88% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Bronze |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0 ~ 40℃ |
| Power Good Signal | 100 – 150ms |
| Hold Up Time | ≥ 16ms |
| MTBF | >100,000 hours @ 25℃ ambient |
| Protections | UVP / OVP / OPP / OTP / SCP |
| Regulatory | TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region’s request.) |
| Connectors |
ATX 24 Pin: x1 = 1x (500mm) EPS 8Pin / 4+4 Pin: x2 = 1x (550+120mm) SATA: x6 = 2x (400+150+150mm) Peripheral 4 Pin: x3 = 1x (400+150+150mm) PCI-e 6+2 Pin: x4 = 2x (500+120mm) |
| Weight |
Net: 1.75 kg Gross: 2.15 kg |
| Package Dimensions | 245 x 190 x 110mm (9.65 x 7.48 x 4.33″) |
| Warranty | 5 years |
| Note* | Price, feature and specifications are subject to change without notice. |
