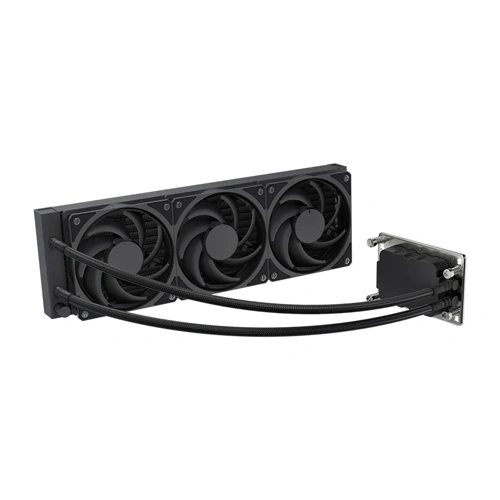

Cooler Master MasterLiquid PL360 TR5-SP6 Liquid CPU Cooler
Feature
MasterLiquid PL360 TR5-SP6
- Optimized for AMD Threadrippers
- Large, full-coverage copper base
- Mobius 120 fans
- All-in-one thermal solution
Ultimate Cooling for Extreme Performance
Cooler Master’s high-performance MasterLiquid series is back with the MasterLiquid PL360 TR5-SP6 Edition, a new cooler specifically designed for optimal performance with AMD Threadripper CPUs. Packing our state-of-the-art Mobius 120 fans and an all-in-one design, this latest addition to the MasterLiquid line of products gives you everything you need to buff your machine with a powerful blast of cooling energy. Synergize your AMD build with the MasterLiquid PL360 TR5-SP6.
Optimized for AMD Threadrippers
This edition of the MasterLiquid series has been specially designed for AMD TR5-SP6 CPUs only
Large, full-coverage copper base
The extensive copper base spreads heat more evenly across the cooling surface, allowing for quicker dissipation and maintaining lower CPU temperatures even under heavy loads.
Mobius 120 fans
Our critically acclaimed Mobius 120 fans provide both high-end thermal performance and unparalleled noise control
All-in-one thermal solution
Pre-applied thermal paste and easy snap-on brackets make installation and set-up a breeze
Cooler Master
Black
2400 RPM
120mm * 3
360mm
5 Years
4719512154571
MLO-R36M-A24PK-RA
1 kg
N/A
| Specification | |
|---|---|
| Product Number | MLO-R36M-A24PK-RA |
| Exterior Color | Black |
| CPU Socket | AMD TR5/SP6 |
| Radiator Dimensions | 394 x 119.2 x 27.2 mm(10.9 x 4.7 x 1.1 inch) |
| Radiator Material | Aluminum |
| Fan Dimension | 120 x 120 x 25 mm (4.7 x 4.7 x 1″) |
| Fan Quantity | 3 PCS |
| Fan LED Type | NON LED |
| Fan Speed | 0~2400 RPM ± 10% |
| Fan Airflow | 127.6m³/h (75.2 CFM) (Max) |
| Fan Air Pressure | 3.63 (mmH2O) (Max) |
| Fan Noise Level (dB-A) | 30 dB(A) (Max) |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.18 A |
| Fan Power Connector | 4-Pin (PWM) |
| Fan MTTF | >200,000 hours |
| Fan Bearing Type | Loop dynamic bearing |
| Fan Safety Current | 0.35 A |
| Pump Dimension | 117.9 x 78.9 x 24.5 mm(4.6 x 3.1 x 1 inch) |
| Pump MTTF | > 70,000 hours |
| Pump Noise Level | 30 dB(A) (Max) |
| Pump Speed | 3000 ± 10% RPM |
| Pump Connector | 4-Pin |
| Pump Power Consumption | 8.16 W |
| Pump Rated Voltage | 12 VDC |
| Tube length | 610 mm |
| Warranty | 5 Years |
| Note* | Price, feature and specifications are subject to change without notice |
