Cooler Master Elite 502 ARGB E-ATX Mid Tower Case

Cooler Master Elite 502 ARGB E-ATX Mid Tower Case

Feature

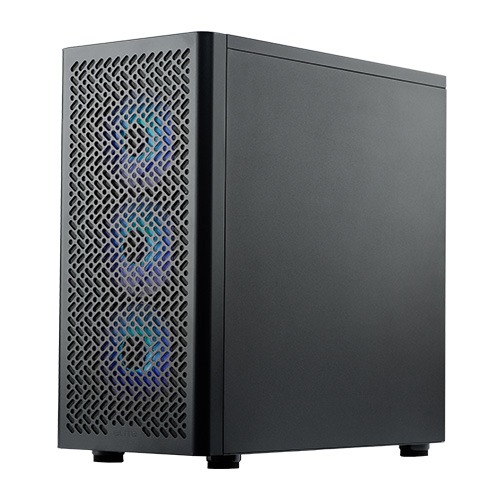

The Cooler Master Elite 502 Black Mid Tower delivers exceptional cooling and performance with its advanced mesh front panel for enhanced airflow. Designed for mid-to-entry-level builders, it supports up to a 420mm radiator, 410mm GPUs, and modern back-connector motherboards, offering a streamlined and efficient building experience at an accessible price.

BACK-CONNECTED MOTHERBOARD SUPPORT: Supports back-connected motherboard design, freeing up space at the front of the case and providing 33-35mm of space behind the motherboard tray for easier cable management.

OPTIMIZED AIRFLOW: Comes with three Pre-Installed 120mm ARGB fans, it offers stable cooling performance while adding stunning lighting effects to your build.

USB TYPE-C UPGRADE: USB Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.

ROOM FOR UPDATES: Supports a 410mm GPU, a 170mm CPU cooler, and ample space for future hardware upgrades.

VERSATILE THERMAL OPTIONS: Supports up to seven 120mm fans and either a top-mounted 360mm radiator or a front-mounted 420mm radiator, offering hyper-effective CPU thermal performance.

REMOVABLE HDD CAGE: The HDD cage is completely removable, providing better access during assembly and system upgrades.

Key Features:

• Series: Elite Series
• Effortless Efficiency
• Includes Mesh Front Panel
• Left Side Panel Material: Tempered Glass
• Exterior and Right Side Panel Material: Steel
• Dimensions (L x W x H): 474 x 230 x 481 mm (Incl. Protrusions), 435 x 230 x 465 mm (Excl. Protrusions)
• Volume (incl. Protrusions): 49.73 L
• Motherboard Support: ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12″x10.9″/ 30.5cm x 27.7cm motherboards, may impact cable management)
• 5.25″ Drive Bays: N/A
• 3.5″ Drive Bays: 2
• 2.5″ Drive Bays: 2 (Max.6)
• I/O Panel – USB Ports: 1x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C
• I/O Panel – Audio In / Out: 3.5 mm Combo x 1
• Fan Support – Front: (Filtered) 140 mm x 3 / 120 mm x 3
• Fan Support – Top: (Filtered) 140 mm x 2 / 120 mm x 3
• Fan Support – Rear: 1x 120mm
• Pre-Installed Fans – Front: 3 x 120mm
• Radiator Support – Front: 120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 457*140*27 mm)
• Radiator Support – Top: 120 / 140 / 240 / 280 / 360mm
• Radiator Support – Rear: 120mm
• Clearance – CPU Cooler: 170mm
• Clearance – PSU: 170mm, 210mm (w/o HDD Cage)
• Clearance – Graphics Card (installed 3.5″HDD BRK): 360 / 410 mm (w/o Front Radiator)

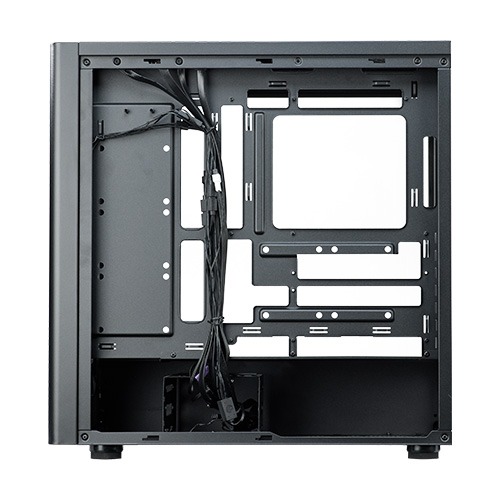

• Cable Routing – Behind Motherboard Tray: 33-35 mm
• Power Supply Support: ATX
• Color: Black
