Description

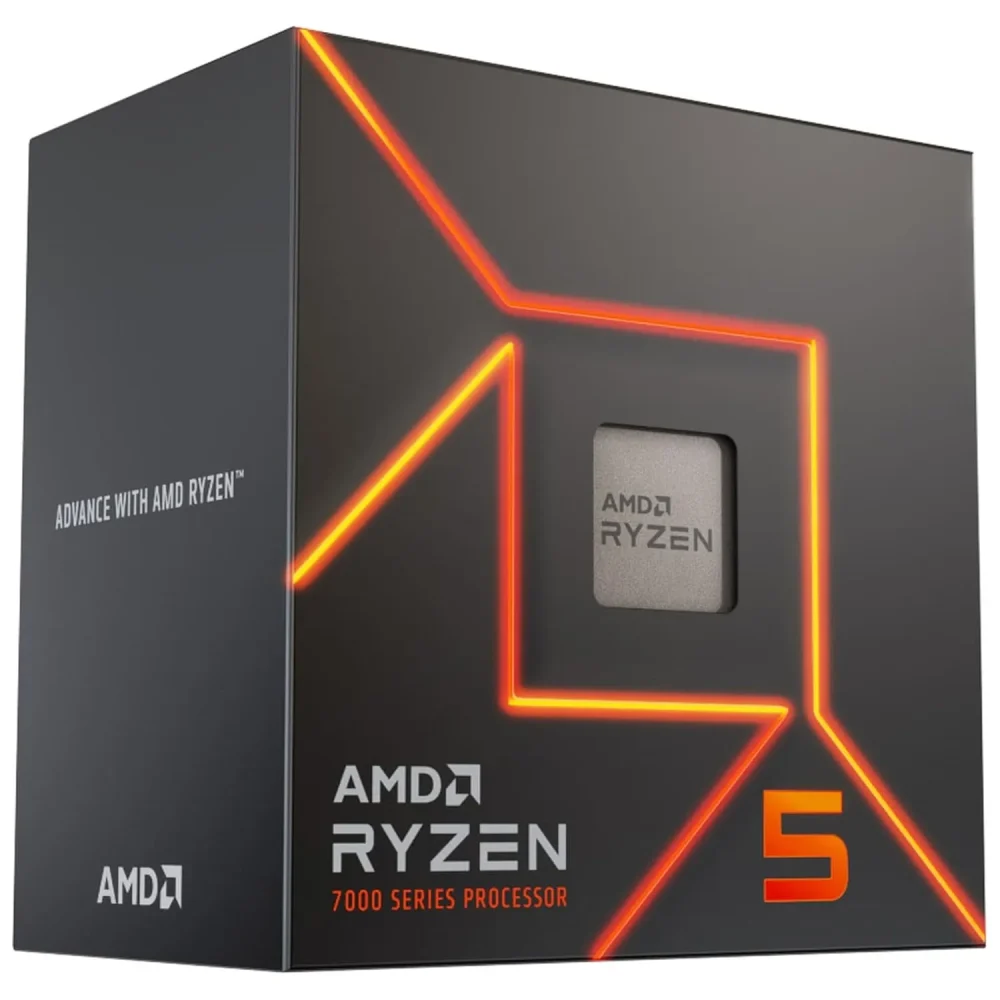

AMD Ryzen 5 7600 AM5 Desktop Processor (5.1 GHz / 6 Cores / 12 Threads)

- 6 Cores & 12 Threads, 38 MB Cache
- Base Clock: 3.8 GHz, Max Boost Clock: up to 5.1 GHz
- Memory Support: DDR5 5200MHz, Memory Channels: 2, TDP: 65W, PCI Express Generation : PCIe Gen 4
- Compatible with Motherboards based on 600 Series Chipset, Socket AM5
- Welcome to the Cutting-Edge of Performance: Push the limits of your system like never before with DDR5 memory, unlocking even faster frequencies, greater capacities, and better performance than previous generations.
- Do it All, and Do it Faster: As modern CPUs feature more and more cores, the unprecedented speed of DDR5 ensures your high-end CPU gets data quickly, enabling faster processing, rendering, and buffering than ever before.
- Onboard Voltage Regulation: Makes for easier, more finely-tuned, and more stable overclocking through CORSAIR iCUE software than previous generation motherboard control.
- Custom Intel XMP 3.0 Profiles: Customize and save your own XMP profiles via iCUE to tailor performance by app or task for greater efficiency.
- 12TH & 13TH GEN CORE – The PRO B760M-P is a compact Micro-ATX motherboard outfitted with the latest Intel B760 chipset (LGA 1700, 12th & 13th Gen Core); The VRM features MSI Core Boost technology for improved stability & performance
- PASSIVE & AI COOLING – A chipset heatsinks provide passive cooling; Frozr AI cooling automatically adjusts system fan settings based on CPU & GPU temperatures
- DDR5 MEMORY, PCIe 4.0 x16 SLOT – 4 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 6800+ MHz); Primary PCIe x16 slot supports PCIe 4.0 (64GB/s) and includes Steel Armor
- DUAL M.2 CONNECTORS – Storage options include 2 x M.2 Gen4 x4 64Gbps slots; The primary M.2 slot includes Shield Frozr to prevent thermal throttling during hyper-fast SSD access
Additional Information
base-clock
3.7 GHz
brands
AMD
cpu-cores
6
ean-upc-code
730143314572
processor-max-boost-clock
5.1 GHz
processor-model
Ryzen 5 7600
processor-series
ryzen 7000|Ryzen 5
product-type
Creator
socket
AM5
tdp
65W
threads
12
SKU
100-100001015BOX
Weight
1 kg
Dimensions
N/A
Specifications
| Category | Specification |
| Name | AMD Ryzenâ„¢ 5 7600 |
| Family | Ryzen |
| Series | Ryzen 7000 Series |
| Form Factor | Desktop, Boxed Processor |
| Market Segment | Enthusiast Desktop |
| AMD PRO Technologies | No |
| Regional Availability | Global |
| Former Codename | Raphael AM5 |
| Architecture | Zen 4 |
| CPU Cores | 6 |
| Threads | 12 |
| SMT (Multithreading) | Yes |
| Max Boost Clock | Up to 5.1 GHz |
| Base Clock | 3.8 GHz |
| L1 Cache | 384 KB |
| L2 Cache | 6 MB |
| L3 Cache | 32 MB |
| Default TDP | 65W |
| CPU Core Technology | TSMC 5nm FinFET |
| I/O Die Technology | TSMC 6nm FinFET |
| CCD Size | 71 mm² |
| IOD Size | 122 mm² |
| Package Die Count | 2 |
| Unlocked for Overclocking | Yes |
| AMD EXPO Support | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer | Yes |
| Ryzen Master Support | Yes |
| Socket | AM5 |
| Supported Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
| Thermal Solution (PIB) | AMD Wraith Stealth |
| Max Operating Temperature (Tjmax) | 95°C |
| Launch Date | 01/14/2023 |
| OS Support | Windows 11/10 64-bit, RHEL, Ubuntu (64-bit) |
| USB 3.2 Gen 2 (10Gbps) | 4 |
| USB 3.2 Gen 1 (5Gbps) | 0 |
| USB 2.0 | 1 |
| Native SATA Ports | 0 |
| PCIe Version | PCIe 5.0 |
| Native PCIe Lanes (Total/Usable) | 28 / 24 |
| Extra PCIe Lanes (Chipset) | X670E: 12× Gen4, X670: 12× Gen4, B650E: 8× Gen4, B650: 8× Gen4 |
| NVMe Support | Boot, RAID 0/1/10 |
| Memory Type | DDR5 |
| Memory Channels | 2 |
| Max Memory | 128 GB |
| Memory Type | UDIMM |
| Max Memory Speed | 2×1R: DDR5-5200 / 2×2R: DDR5-5200 / 4×1R: DDR5-3600 / 4×2R: DDR5-3600 |
| ECC Support | Yes (Motherboard dependent) |
| Graphics | AMD Radeonâ„¢ Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| USB-C DisplayPort Alt Mode | Yes |
| Product ID (Boxed) | 100-100001015BOX |
| Supported Technologies | AMD EXPOâ„¢, AMD Ryzenâ„¢ Technologies |
